Migrating the Jena editor from CodeMirror 5 to 6

On October last year, Dependabot’s bot sent Apache Jena a pull request to update CodeMirror (a code editor component for web) to from our current 5.x version to 6.0.1. The build failed, as there were breaking changes in the CodeMirror API going from 5.x to 6.x.

CodeMirror developers wrote a nice documentation for users to migrate and update their code.

After following their documentation, unfortunately there were still build errors. Several months later, I found myself on a Saturday afternoon in a room struggling with the first heat wave in Barcelona this year, and decided to cool down by writing some code under the ceiling fan.

Turtle (ttl)

The first problem I had was that the turtle language syntax was not available. The solution for that problem was to use the codemirror-lang-turtle.

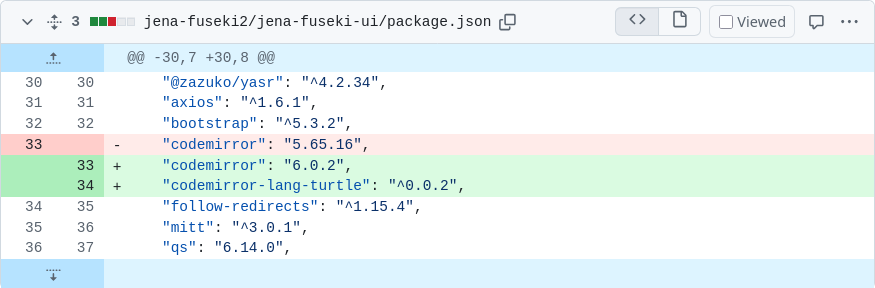

Using new turtle library codemirror-lang-turtle
Using new turtle library codemirror-lang-turtle

cm.scrollTo and cm.getScrollInfo are gone

I could not find anything in the codemirror/view repository (searched code and issues), nor on the CodeMirror website. But after testing a bit the new code, I realized that dispatching the change to update the text content resulted in the new text appearing in the editor without any issues to the scroll bar.

So I just removed those lines (for now, at least).

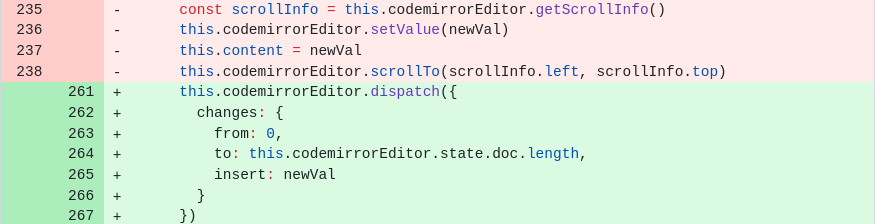

Delete scroll-bar-related code
Delete scroll-bar-related code

No .on to watch for change events in CodeMirror view element

Previously, we had some code that called .on('change', ...) on the cm object, to listen for the events and sync it with our Vue elements.

That one would have been very hard (or at least very boring) problem to fix, but thankfully somebody else had already found it. The user message was also showing that I would have to call that method directly on EditorView, and not on the cm instance (must be quite interesting how they hook that up, global objects and all).

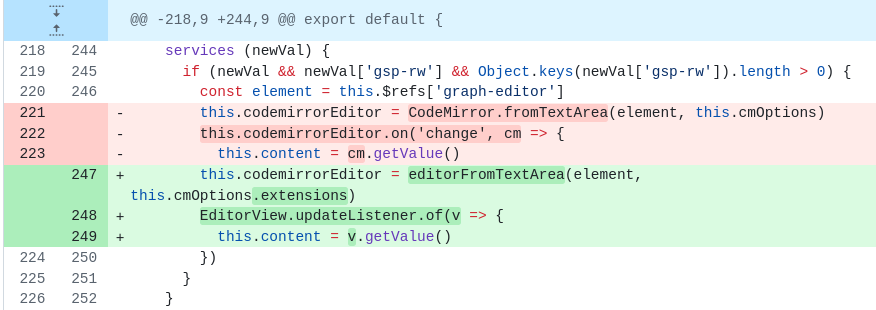

Using EditorView.updateListener instead of on('change', ...)
Using EditorView.updateListener instead of on('change', ...)

e2e test cannot locate .CodeMirror-code

The tests in Jena UI are written with Cypress, which works similarly to Selenium. Elements are located by selectors like CSS classes. The only remaining test failure was due to an element selected by .CodeMirror-code that was not found.

So I fired the UI in offline mode – something I have always available when I work in frontend projects – and checked the new CSS class: .cm-content. Changed that, and the test passed! 🎉

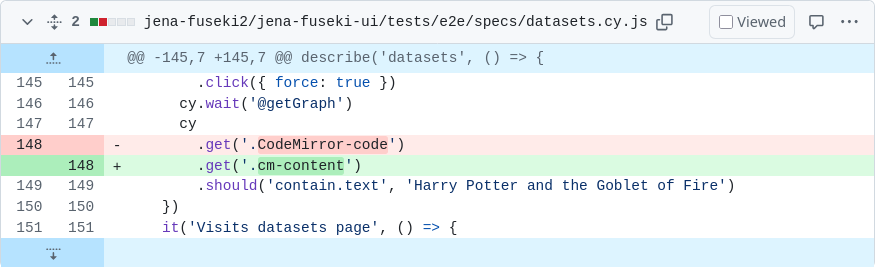

Last fix, using the right CSS class
Last fix, using the right CSS class

Now the code is ready for review, and hopefully it will work well when it is included in a future release of Jena – fingers crossed for that! 🤞
